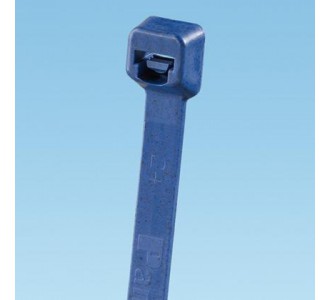

PANDUIT聚丙烯金屬探測型扎帶線束_PLT2S-C186
產品介紹：
| 型號 | 長度 | 寬度 | 最大束線徑 | 承受力 | 包裝 | ||||
| In. | mm | In. | mm | In. | mm | Lbs. | N | ||
| PLT1M-C86 | 3.9 | 99 | 0.098 | 2.5 | .87 | 22 | 18 | 80 | 100 |
| PLT2I-C86 | 8.0 | 203 | .142 | 3.6 | 2.00 | 51 | 40 | 178 | 100 |
| PLT2S-C86 | 7.4 | 188 | .190 | 4.8 | 1.88 | 48 | 50 | 222 | 100 |
| PLT2S-M86 | 7.4 | 188 | .190 | 4.8 | 1.88 | 48 | 50 | 222 | 1000 |
| PLT3S-C86 | 11.5 | 292 | .190 | 4.8 | 3.00 | 76 | 50 | 222 | 100 |
| PLT3S-M86 | 11.5 | 292 | .190 | 4.8 | 3.00 | 76 | 50 | 222 | 1000 |
| PLT4S-C86 | 14.5 | 368 | .190 | 4.8 | 4.00 | 102 | 50 | 222 | 100 |
| PLT4S-M86 | 14.5 | 368 | .190 | 4.8 | 4.00 | 102 | 50 | 222 | 1000 |
| PLT3H-L86 | 11.4 | 290 | .300 | 7.6 | 3.00 | 76 | 120 | 534 | 50 |
| PLT3H-TL86 | 11.4 | 290 | .300 | 7.6 | 3.00 | 76 | 120 | 534 | 250 |
| PLT4H-L86 | 14.5 | 368 | .300 | 7.6 | 4.00 | 102 | 120 | 534 | 50 |
| PLT4H-TL86 | 14.5 | 368 | .300 | 7.6 | 4.00 | 102 | 120 | 534 | 250 |
?
