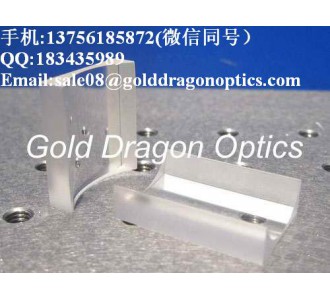

K9平凹柱面透鏡
材 料:H-K9L
設計波長:587.6nm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.2mm
面 型:λ/
[email protected]
光 潔 度:60-40
偏 心:<3'
有效孔徑:>90%
倒 邊:<0.2×45°
鍍 膜:多層增透膜
A:350-650nm
B:650-1050nm
C:1050-1580nm
K9平凹柱面透鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm)
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1395L1S |
-3.90 |
6.00 |
4.00 |
-2.02 |
2.00 |
2.70 |
-5.22 |
| 21K1395L2S |
-3.90 |
8.00 |
4.00 |
-2.02 |
2.00 |
2.70 |
-5.22 |
| 21K1597L1S |
-4.00 |
6.00 |
4.00 |
-2.07 |
2.00 |
2.60 |
-5.32 |
| 21K1597L2S |
-4.00 |
8.00 |
4.00 |
-2.07 |
2.00 |
2.60 |
-5.32 |
| 21K1523L1S |
-5.80 |
6.00 |
4.00 |
-3.00 |
2.00 |
2.40 |
-7.12 |
| 21K1523L2S |
-5.80 |
8.00 |
4.00 |
-3.00 |
2.00 |
2.40 |
-7.12 |
| 21K1087L1S |
-6.40 |
8.00 |
6.00 |
-3.31 |
2.00 |
3.20 |
-7.72 |
| 21K1087L2S |
-6.40 |
12.00 |
6.00 |
-3.31 |
2.00 |
3.20 |
-7.72 |
| 21K1363L1S |
-7.70 |
9.00 |
7.00 |
-3.98 |
2.00 |
3.40 |
-9.02 |
| 21K1363L2S |
-7.70 |
14.00 |
7.00 |
-3.98 |
2.00 |
3.40 |
-9.02 |
| 21K1836L1S |
-9.70 |
12.00 |
10.00 |
-5.01 |
2.00 |
4.80 |
-11.02 |
| 21K1836L2S |
-9.70 |
20.00 |
10.00 |
-5.01 |
2.00 |
4.80 |
-11.02 |
| 21K1684L1S |
-12.70 |
12.00 |
10.00 |
-6.56 |
2.00 |
3.80 |
-14.02 |
| 21K1684L2S |
-12.70 |
20.00 |
10.00 |
-6.56 |
2.00 |
3.80 |
-14.02 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1816L1S |
-13.70 |
15.00 |
13.00 |
-7.08 |
2.00 |
5.30 |
-15.02 |
| 21K1816L2S |
-13.70 |
26.00 |
13.00 |
-7.08 |
2.00 |
5.30 |
-15.02 |
| 21K1753L1S |
-15.00 |
12.00 |
10.00 |
-7.75 |
2.00 |
3.40 |
-16.32 |
| 21K1753L2S |
-15.00 |
20.00 |
10.00 |
-7.75 |
2.00 |
3.40 |
-16.32 |
| 21K1037L1S |
-19.00 |
21.00 |
19.00 |
-9.82 |
2.00 |
7.90 |
-20.32 |
| 21K1037L2S |
-19.00 |
38.00 |
19.00 |
-9.82 |
2.00 |
7.90 |
-20.32 |
| 21K1085L1S |
-20.00 |
17.00 |
15.00 |
-10.34 |
2.00 |
4.70 |
-21.32 |
| 21K1085L2S |
-20.00 |
30.00 |
15.00 |
-10.34 |
2.00 |
4.70 |
-21.32 |
| 21K1006L1S |
-22.20 |
15.00 |
12.50 |
-11.47 |
2.00 |
3.50 |
-23.52 |
| 21K1006L2S |
-22.20 |
25.00 |
12.50 |
-11.47 |
2.00 |
3.50 |
-23.52 |
| 21K1426L1S |
-25.00 |
12.00 |
10.00 |
-12.92 |
2.00 |
2.80 |
-26.32 |
| 21K1426L2S |
-25.00 |
20.00 |
10.00 |
-12.92 |
2.00 |
2.80 |
-26.32 |
| 21K1900L1S |
-25.40 |
18.00 |
16.00 |
-13.13 |
2.00 |
4.40 |
-26.72 |
| 21K1900L2S |
-25.40 |
32.00 |
16.00 |
-13.13 |
2.00 |
4.40 |
-26.72 |
| 21K1787L1S |
-25.40 |
28.00 |
25.40 |
-13.13 |
2.00 |
10.30 |
-26.72 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1787L2S |
-25.40 |
51.00 |
25.40 |
-13.13 |
2.00 |
10.30 |
-26.72 |
| 21K1982L1S |
-30.00 |
22.00 |
20.00 |
-15.50 |
2.00 |
5.30 |
-31.32 |
| 21K1982L2S |
-30.00 |
40.00 |
20.00 |
-15.50 |
2.00 |
5.30 |
-31.32 |
| 21K1325L1S |
-38.10 |
28.00 |
26.00 |
-19.69 |
2.00 |
6.50 |
-39.42 |
| 21K1325L2S |
-38.10 |
52.00 |
26.00 |
-19.69 |
2.00 |
6.50 |
-39.42 |
| 21K1283L1S |
-40.00 |
12.00 |
10.00 |
-20.67 |
2.00 |
2.50 |
-41.32 |
| 21K1283L2S |
-40.00 |
20.00 |
10.00 |
-20.67 |
2.00 |
2.50 |
-41.32 |
| 21K1662L1S |
-50.00 |
22.00 |
20.00 |
-25.84 |
2.00 |
3.80 |
-51.32 |
| 21K1662L2S |
-50.00 |
40.00 |
20.00 |
-25.84 |
2.00 |
3.80 |
-51.32 |
| 21K1336L1S |
-50.00 |
32.00 |
30.00 |
-25.84 |
2.00 |
6.50 |
-51.32 |
| 21K1336L2S |
-50.00 |
60.00 |
30.00 |
-25.84 |
2.00 |
6.50 |
-51.32 |
| 21K1792L1S |
-50.80 |
53.00 |
50.80 |
-26.25 |
2.00 |
19.90 |
-52.12 |
| 21K1792L2S |
-50.80 |
90.00 |
50.80 |
-26.25 |
2.00 |
19.90 |
-52.12 |
| 21K1995L1S |
-60.00 |
32.00 |
30.00 |
-31.01 |
2.00 |
5.60 |
-61.32 |
| 21K1995L2S |
-60.00 |
60.00 |
30.00 |
-31.01 |
2.00 |
5.60 |
-61.32 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1015L1S |
-60.00 |
62.00 |
60.00 |
-31.01 |
2.00 |
23.50 |
-61.32 |
| 21K1015L2S |
-60.00 |
95.00 |
60.00 |
-31.01 |
2.00 |
23.50 |
-61.32 |
| 21K1216L1S |
-62.90 |
53.00 |
50.80 |
-32.51 |
2.00 |
13.60 |
-64.22 |
| 21K1216L2S |
-62.90 |
95.00 |
50.80 |
-32.51 |
2.00 |
13.60 |
-64.22 |
| 21K1913L1S |
-70.00 |
32.00 |
30.00 |
-36.18 |
2.00 |
5.00 |
-71.32 |
| 21K1913L2S |
-70.00 |
60.00 |
30.00 |
-36.18 |
2.00 |
5.00 |
-71.32 |
| 21K1431L1S |
-75.00 |
53.00 |
50.80 |
-38.76 |
2.00 |
11.10 |
-76.32 |
| 21K1431L2S |
-75.00 |
90.00 |
50.80 |
-38.76 |
2.00 |
11.10 |
-76.32 |
| 21K1689L1S |
-75.60 |
53.00 |
50.80 |
-39.07 |
2.00 |
12.00 |
-77.58 |
| 21K1689L2S |
-75.60 |
90.00 |
50.80 |
-39.07 |
2.00 |
12.00 |
-77.58 |
| 21K1526L1S |
-80.00 |
22.00 |
20.00 |
-41.34 |
2.00 |
4.10 |
-81.98 |
| 21K1526L2S |
-80.00 |
40.00 |
20.00 |
-41.34 |
2.00 |
4.10 |
-81.98 |
| 21K1310L1S |
-80.00 |
82.00 |
80.00 |
-41.34 |
3.00 |
32.10 |
-81.98 |
| 21K1310L2S |
-80.00 |
145.00 |
80.00 |
-41.34 |
3.00 |
32.10 |
-81.98 |
| 21K1743L1S |
-100.00 |
32.00 |
30.00 |
-51.68 |
3.00 |
5.10 |
-101.98 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1743L2S |
-100.00 |
60.00 |
30.00 |
-51.68 |
3.00 |
5.10 |
-101.98 |
| 21K1936L1S |
-100.00 |
90.00 |
100.00 |
-51.68 |
3.00 |
39.90 |
-101.98 |
| 21K1936L2S |
-100.00 |
145.00 |
100.00 |
-51.68 |
3.00 |
39.90 |
-101.98 |
| 21K1819L1S |
-130.00 |
32.00 |
30.00 |
-67.18 |
3.00 |
4.60 |
-131.98 |
| 21K1819L2S |
-130.00 |
60.00 |
30.00 |
-67.18 |
3.00 |
4.60 |
-131.98 |
| 21K1419L1S |
-150.00 |
32.00 |
30.00 |
-77.52 |
3.00 |
4.40 |
-151.98 |
| 21K1419L2S |
-150.00 |
60.00 |
30.00 |
-77.52 |
3.00 |
4.40 |
-151.98 |
| 21K1956L1S |
-150.00 |
90.00 |
100.00 |
-77.52 |
3.00 |
20.90 |
-151.98 |
| 21K1956L2S |
-150.00 |
145.00 |
100.00 |
-77.52 |
3.00 |
20.90 |
-151.98 |
| 21K1069L1S |
-200.00 |
32.00 |
30.00 |
-103.36 |
3.00 |
4.00 |
-201.98 |
| 21K1069L2S |
-200.00 |
60.00 |
30.00 |
-103.36 |
3.00 |
4.00 |
-201.98 |
| 21K1115L1S |
-200.00 |
90.00 |
100.00 |
-103.36 |
3.00 |
15.60 |
-201.98 |
| 21K1115L2S |
-200.00 |
145.00 |
100.00 |
-103.36 |
3.00 |
15.60 |
-201.98 |
| 21K1030L1S |
-250.00 |
32.00 |
30.00 |
-129.20 |
3.00 |
3.80 |
-251.98 |
| 21K1030L2S |
-250.00 |
60.00 |
30.00 |
-129.20 |
3.00 |
3.80 |
-251.98 |
| 編號(NO.) |
焦距(EFL) |
長(L) |
寬(H) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 21K1984L1S |
-300.00 |
62.00 |
60.00 |
-155.04 |
3.00 |
5.80 |
-301.98 |
| 21K1984L2S |
-300.00 |
95.00 |
60.00 |
-155.04 |
3.00 |
5.80 |
-301.98 |
| 21K1487L1S |
-400.00 |
32.00 |
30.00 |
-206.72 |
3.00 |
3.50 |
-401.98 |
| 21K1487L2S |
-400.00 |
60.00 |
30.00 |
-206.72 |
3.00 |
3.50 |
-401.98 |
| 21K1281L1S |
-500.00 |
32.00 |
30.00 |
-258.40 |
3.00 |
3.40 |
-501.98 |
| 21K1281L2S |
-500.00 |
60.00 |
30.00 |
-258.40 |
3.00 |
3.40 |
-501.98 |
| 21K1220L1S |
-700.00 |
32.00 |
30.00 |
-361.76 |
3.00 |
3.30 |
-701.98 |
| 21K1220L2S |
-700.00 |
60.00 |
30.00 |
-361.76 |
3.00 |
3.30 |
-701.98 |
| 21K1002L1S |
-1000.00 |
32.00 |
30.00 |
-516.80 |
3.00 |
3.20 |
-1001.98 |
| 21K1002L2S |
-1000.00 |
60.00 |
30.00 |
-516.80 |
3.00 |
3.20 |
-1001.98 |
?
